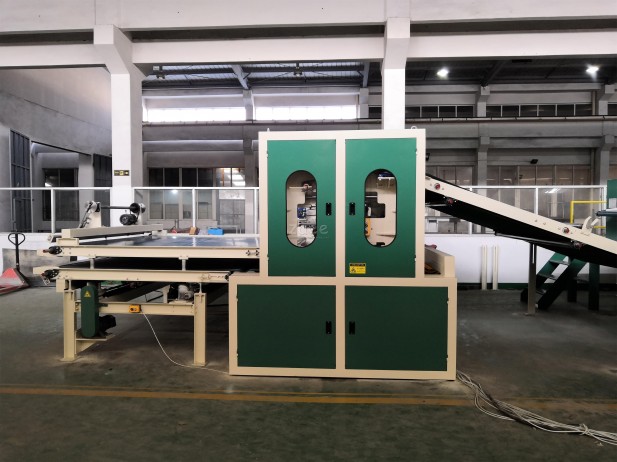

It is composed of inclined feed-in lattice, double –rollers clamping, to-and-from lapping, bottom output lattice.

• thickness of the vertical lapping: 20mm-150mm.
• all motors inverter controlled
• the lapped holding lattice is made of PVC lattice, anti-static;
• input lattice width: 2700mm
• output lattice iwdth: 2700mm
• output speed: 1-20m/min, adjustable.
• input speed: less than 40m/min, adjustable.
• each driving elements are made of light weight, high strength material, specially designed
• CV: less than 30%
