Specifications:

• Working width：2800mm.
• Input speed: 2～10m／min.
• Forming speed: 10～50m／min.
• Input weight: 200～800g∕m2.
• Forming weight: 40～200g∕m2.
• Installed power: 1.5KW×7＝10.5KW.

Characteristics:

• Function:Multilayer fiber webs outputted from Web laying machine, which are broadwise arranged, change to endwise arranged partly under the efection of pairs of drawing rollers. Quantity of fiber webs decrease along with the increase of drawing capacity, form random fiber webs with vertical and horizontal direction finally and carried to the next process by conveyor.
• Triangle-style drawing way with more drawing points, small distance between touching points of upper and lower rollers, good uniformity of fiber web.

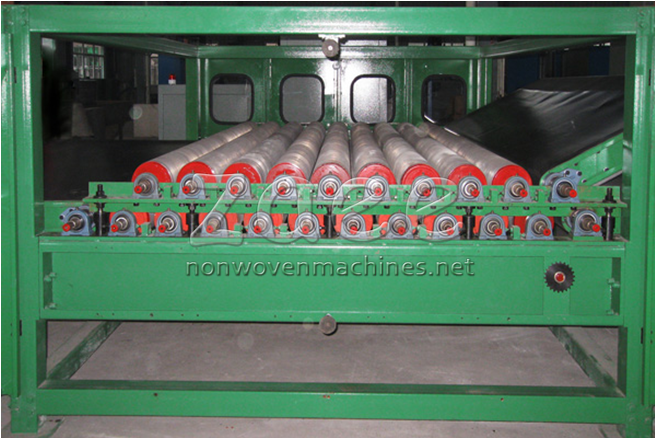

• There are five groups of drawing rollers totally and four rollers per group. Each group of drawing rollers transmits by gear speed-decreasing motor individually, with flexible process controlling.
• The lower rollers are fixed, and the upper rollers can lift and drop as a whole for adjusting the distance between the upper and lower rollers easily.
• Equipped with V-style lattice for fiber-web pre-compressing, web moves smoothly and without fold.
• Safety-guarding devices on the machine transmissions protect personal safety of operators and secure the working of the machine.
  Size:（900+2600+1200）（length）×3300（width）×1620（height）.
  Weight: 8000Kg.
